DIM600DCM17-A000 - IGBT Chopper Module

Features

  • s s s s 10µs Short Circuit Withstand High Thermal Cycling Capability Non Punch Through Silicon Isolated MMC Base with AlN Substrates KEY.

📥 Download Datasheet

Datasheet Details

Part number DIM600DCM17-A000
Manufacturer Dynex
File Size 223.12 KB
Description IGBT Chopper Module
Datasheet download datasheet DIM600DCM17-A000 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DIM600DCM17-A000 Igbt Chopper Module Dynex Semiconductor
DIM600DDM17-A000 Dual Switch IGBT Module Dynex Semiconductor
DIM600BSS12-A000 Single Switch IGBT Module Dynex Semiconductor
DIM600BSS12-E000 Single Switch IGBT Module Dynex Semiconductor
DIM600NSM45-F0000 Single Switch IGBT Module Dynex Semiconductor

Other Datasheets by Dynex

Part Number Description
DIM600M1HS17-PA500 Half Bridge IGBT
DIM600NCM17-A000 IGBT
DIM600WHS12-PC500 Half Bridge IGBT Module
DIM650H2HS17-PA500 Half Bridge IGBT
DIM1000NSM33-PS500 Single Switch IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

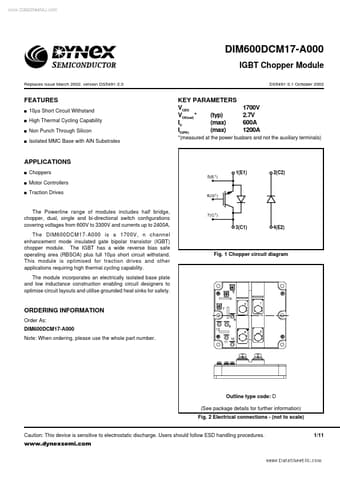

www.DataSheet4U.com DIM600DCM17-A000 DIM600DCM17-A000 IGBT Chopper Module Replaces issue March 2002, version DS5491-2.0 DS5491-3.1 Octtober 2002 FEATURES s s s s 10µs Short Circuit Withstand High Thermal Cycling Capability Non Punch Through Silicon Isolated MMC Base with AlN Substrates KEY PARAMETERS VCES (typ) VCE(sat) * (max) IC (max) IC(PK) 1700V 2.7V 600A 1200A *(measured at the power busbars and not the auxiliary terminals) APPLICATIONS s s s Choppers Motor Controllers Traction Drives 5(E1) 1(E1) 2(C2) 6(G1) The Powerline range of modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 600V to 3300V and currents up to 2400A.
