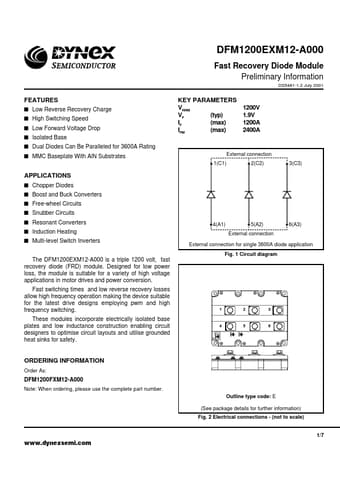

DFM1200EXM12-A000
DFM1200EXM12-A000
Fast Recovery Diode Module Preliminary Information
DS5481-1.2 July 2001
FEATURES
s Low Reverse Recovery Charge s High Switching Speed s Low Forward Voltage Drop s Isolated Base s Dual Diodes Can Be Paralleled for 3600A Rating s MMC Baseplate With AlN Substrates
KEY PARAMETERS VRRM VF (typ) (max) IF (max) IFM
1200V 1.9V 1200A 2400A
External connection 1(C1) 2(C2) 3(C3)
APPLICATIONS
s Chopper Diodes s Boost and Buck Converters s Free-wheel Circuits s Snubber Circuits s Resonant Converters s Induction Heating s Multi-level Switch Inverters The DFM1200EXM12-A000 is a triple 1200 volt, fast recovery diode (FRD) module. Designed for low power loss, the module is suitable for a variety of high voltage applications in motor drives and power conversion.
