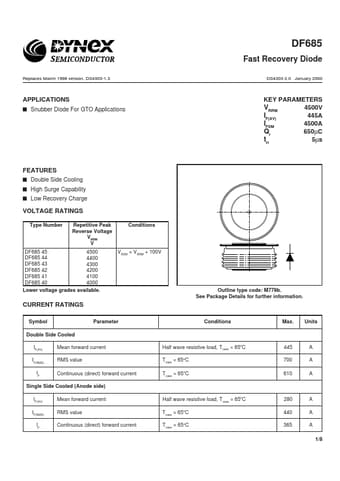

DF685
DF685
Fast Recovery Diode
Replaces March 1998 version, DS4303-1.3 DS4303-2.0 January 2000
APPLICATIONS
s Snubber Diode For GTO Applications
KEY PARAMETERS VRRM 4500V IF(AV) 445A IFSM 4500A Qr 650µC trr 5µs
FEATURES
s Double Side Cooling s High Surge Capability s Low Recovery Charge
VOLTAGE RATINGS
Type Number Repetitive Peak Reverse Voltage VRRM V Conditions
DF685 45 4500 DF685 44 4400 DF685 43 4300 DF685 42 4200 DF685 41 4100 DF685 40 4000 Lower voltage grades available.
VRSM = VRRM + 100V
Outline type code: M779b. See Package Details for further information.
DF685 Datasheet
