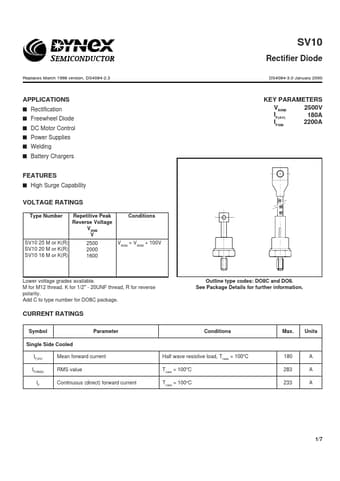

SV10
SV10
Rectifier Diode
Replaces March 1998 version, DS4084-2.3 DS4084-3.0 January 2000
APPLICATIONS
s Rectification s Freewheel Diode s DC Motor Control s Power Supplies s Welding s Battery Chargers
KEY PARAMETERS VRRM 2500V IF(AV) 180A IFSM 2200A
FEATURES
s High Surge Capability
VOLTAGE RATINGS
Type Number Repetitive Peak Reverse Voltage VRRM V 2500 2000 1600 Conditions
SV10 25 M or K(R) SV10 20 M or K(R) SV10 16 M or K(R)
VRSM = VRRM + 100V
Lower voltage grades available. M for M12 thread. K for 1/2" - 20UNF thread, R for reverse polarity. Add C to type number for DO8C package.
Outline type codes: DO8C and DO8. See Package Details for further information.
