ACR44U08LE - Fast Turn-off Asymmetric Thyristor

Download the ACR44U08LE datasheet PDF. This datasheet also covers the ACR-44U variant, as both devices belong to the same fast turn-off asymmetric thyristor family and are provided as variant models within a single manufacturer datasheet.

Features

  • s The ACR44U is a glass passivated asymmetric thyristor which has exceptionally fast turn-off capabilities combined with good turn-on characteristics.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ACR-44U-16LE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ACR44U08LE
Manufacturer Dynex Semiconductor
File Size 110.07 KB
Description Fast Turn-off Asymmetric Thyristor
Datasheet download datasheet ACR44U08LE Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ACR44U12LE Fast Turn-off Asymmetric Thyristor Zarlink Semiconductor
ACR22U04LG (ACR22UxxLG) Fast Turn-Off Asymmetrical Thyristor Marconi
ACR22U06LG (ACR22UxxLG) Fast Turn-Off Asymmetrical Thyristor Marconi
ACR22U08LG (ACR22UxxLG) Fast Turn-Off Asymmetrical Thyristor Marconi
ACR22U10LG (ACR22UxxLG) Fast Turn-Off Asymmetrical Thyristor Marconi

Other Datasheets by Dynex Semiconductor

Part Number Description
ACR44U Fast Turn-off Asymmetric Thyristor
ACR44U10LE Fast Turn-off Asymmetric Thyristor
ACR44U12LE Fast Turn-off Asymmetric Thyristor
ACR44U14LE Fast Turn-off Asymmetric Thyristor
ACR44U16LE Fast Turn-off Asymmetric Thyristor

Full PDF Text Transcription

Click to expand full text

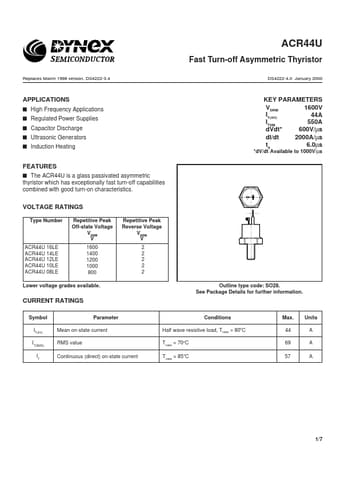

www.DataSheet.co.kr ACR44U ACR44U Fast Turn-off Asymmetric Thyristor Advance Information Replaces March 1998 version, DS4222-3.4 DS4222-4.0 January 2000 APPLICATIONS s High Frequency Applications s Regulated Power Supplies s Capacitor Discharge s Ultrasonic Generators s Induction Heating *dV/dt Available to 1000V/µs KEY PARAMETERS 1600V VDRM IT(AV) 44A ITSM 550A dVdt* 600V/µs dI/dt 2000A/µs tq 6.0µs FEATURES s The ACR44U is a glass passivated asymmetric thyristor which has exceptionally fast turn-off capabilities combined with good turn-on characteristics. VOLTAGE RATINGS Type Number Repetitive Peak Off-state Voltage VDRM V 1600 1400 1200 1000 800 Repetitive Peak Reverse Voltage VRRM V 2 2 2 2 2 Outline type code: SO28. See Package Details for further information.
