DBT137F-600 - Triacs

Product Overview

DnI

DBT137F-600 Triacs by DnI - Datasheet Preview — Datasheet preview – DBT137F-600

Datasheet Details

Part number	DBT137F-600
Manufacturer	DnI
File Size	612.15 KB
Description	Triacs
Datasheet	DBT137F-600_DnI.pdf

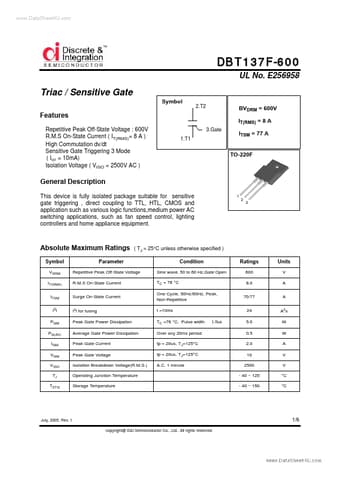

Additional preview pages of the DBT137F-600 datasheet.

Product details

Description

This device is fully isolated package suitable for sensitive gate triggering , direct coupling to TTL, HTL, CMOS and application such as various logic functions,medium power AC switching applications, such as fan speed control, lighting controllers and home appliance equipment.

Features

Repetitive Peak Off-State Voltage : 600V R. M. S On-State Current ( IT(RMS)= 8 A ) High Commutation dv/dt Sensitive Gate Triggering 3 Mode ( IGT = 10mA) Isolation Voltage ( VISO = 2500V AC ) 3.Gate 1.T1 BVDRM = 600V IT(RMS) = 8 A ITSM = 77 A TO-220F General.
