DSC556-03 - Two Output PCIe Gen1 Clock Generator

Product Overview

Datasheet Details

Part number	DSC556-03
Manufacturer	Discera
File Size	342.43 KB
Description	Two Output PCIe Gen1 Clock Generator
Datasheet	DSC556-03 Datasheet

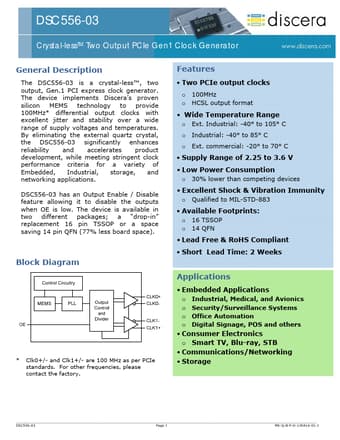

Additional preview pages of the DSC556-03 datasheet.

Product details

Description

The DSC556-03 is a crystal-less™, two output, Gen.1 PCI express clock generator. differential output clocks with excellent jitter and stability over a wide range of supply voltages and temperatures.

Features

Two PCIe output clocks o 100MHz o HCSL output format.
Wide Temperature Range o Ext. Industrial: -40° to 105° C o Industrial: -40° to 85° C o Ext. commercial: -20° to 70° C.
Supply Range of 2.25 to 3.6 V.
Low Power Consumption o 30% lower than competing devices.
Excellent Shock & Vibration Immunity o Qualified to MIL-STD-883.
Available Footprints: o 16 TSSOP o 14 QFN.
Lead Free & RoHS Compliant.
Short Lead Time: 2 Weeks.
