SS1060, SS1020, (SS1020 - SS10100) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 1.0 Ampere SS1020 THRU SS10100 .

datasheet Preview Page 1 from Datasheet4u.com

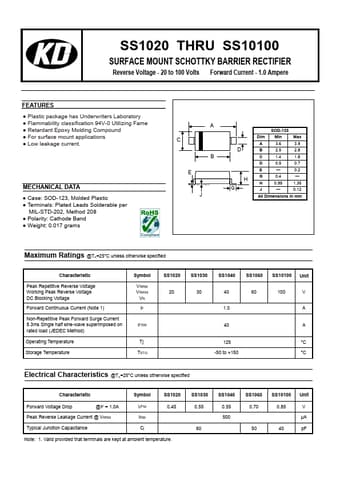

SS1020_Diotech.pdf

SS1060 Datasheet Preview — This datasheet PDF includes multiple part numbers: SS1060, SS1020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SS1060, SS1020

Manufacturer:

Diotech

File Size:

635.59 KB

Description:

(SS1020 - SS10100) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SS1060, SS1020.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory
* Flammability classification 94V-0 Utilizing Fame
* Retardant Epoxy Molding Compound

Applications

* Low leakage current. A C D B E Dim A B C D E SOD-123 Min 3.6 2.5 1.4 0.5
* 0.4 0.95
* Max 3.9 2.8 1.8 0.7 0.2
* 1.35 0.12 MECHANICAL DATA
* Case: SOD-123, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: Cathode B
