Datasheet Details
Part number:
ZMY150, ZMY1
Manufacturer:
Diotec
File Size:
207.45 KB
Description:
Smd zener diodes.
Note:
This datasheet PDF includes multiple part numbers: ZMY150, ZMY1.
Please refer to the document for exact specifications by model.

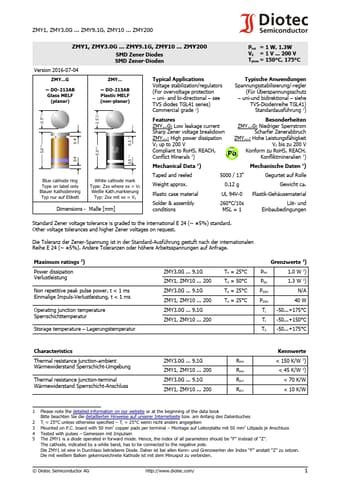

ZMY150, ZMY1, SMD Zener Diodes
ZMY1, ZMY3.0G ZMY9.1G, ZMY10 ZMY200 ZMY1, ZMY3.0G ZMY9.1G, ZMY10 ZMY200 SMD Zener Diodes SMD Zener-Dioden Ptot = 1 W, 1.3W VZ = 1 V 200 V Tjmax = 150°C, 175°C Version 2016-07-04 ZMYG ~ DO-213AB Glass MELF (planar) ZMY ~ DO-213AB Plastic MELF (non-planar) Typical Applications Voltage stabilization/regulators (For overvoltage protection uni- and bi-directional see TVS diodes TGL41 series) Commercial grade 1) Typische Anwendungen Spannungsstabilisierung/-regler (Für
ZMY150 Features
* Besonderheiten ZMYG: Low leakage current ZMYG: Niedriger Sperrstrom Sharp Zener voltage breakdown Scharfer Zenerabbruch ZMY: High power dissipation ZMY: Hohe Leistungsfähigkeit VZ up to 200 V Compliant to RoHS, REACH, Conflict Minerals 1) WEEE VZ bis zu 200 V RoHS Pb ELV Konform zu RoHS
