SBT1860, SBT1820 - Schottky Barrier Rectifier Diodes

Name: SBT1860
SKU: SBT1860-1583207

Diotec

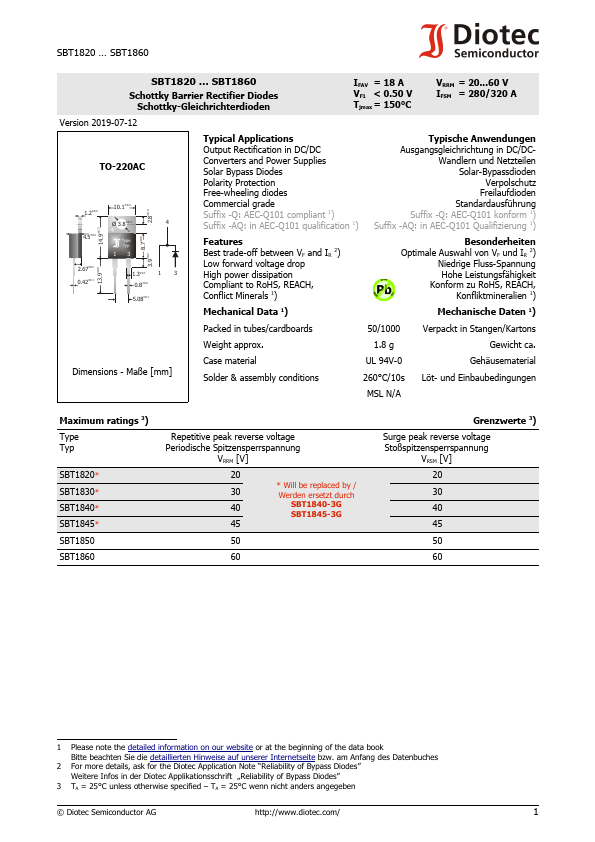

The SBT1860 by Diotec is a Schottky Barrier Rectifier Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	SBT1860, SBT1820
Manufacturer	Diotec
File Size	268.88 KB
Description	Schottky Barrier Rectifier Diodes
Datasheet	SBT1820-Diotec.pdf
Note	This datasheet PDF includes multiple part numbers: SBT1860, SBT1820. Please refer to the document for exact specifications by model.

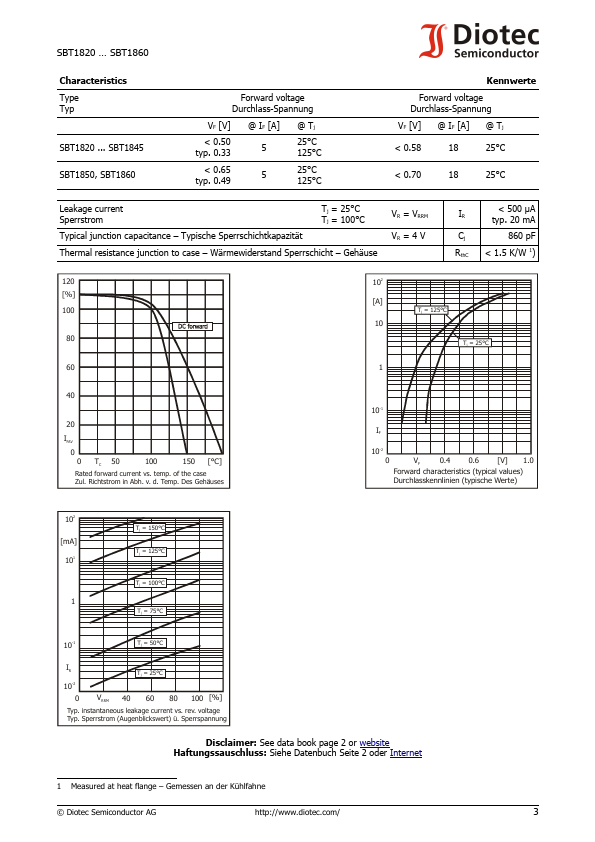

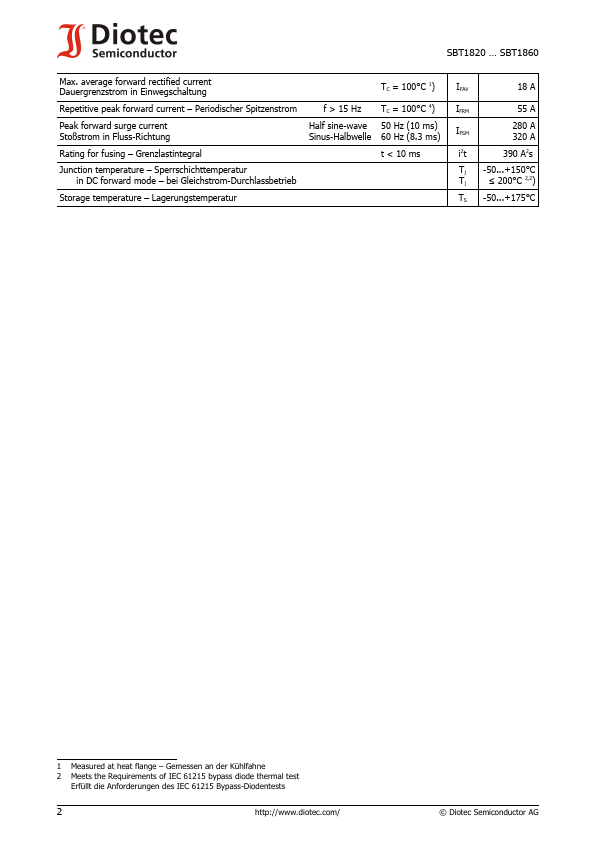

Additional preview pages of the SBT1860 datasheet.

Best trade-off between VF and IR 2) Low forward voltage drop High power dissipation Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) WEEE Typische Anwendungen Ausgangsgleichrichtung in DC/DC- Wandlern und Netzteilen Solar-Bypassdioden Verpolschutz Freilaufdioden Standardausführung Suffix -Q: AEC-Q101 konform 1) Suffix -AQ: in AEC-Q101 Qualifizierung 1) Besonderheiten Optimale Auswahl von VF und IR 2) Niedrige Fluss-Spannung Hohe Leistungsfähigkeit RoHS Pb ELV Konform zu.
