MM3Z36B - Surface mount Silicon Planar Zener Diodes

Download the MM3Z36B datasheet PDF (MM3Z2B4 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount silicon planar zener diodes.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MM3Z2B4-Diotec.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MM3Z36B
Manufacturer Diotec
File Size 97.62 KB
Description Surface mount Silicon Planar Zener Diodes
Datasheet download datasheet MM3Z36B Datasheet

📁 Similar Datasheet

  • MM3Z36B - ZENER DIODES (EIC)
  • MM3Z36B - SILICON PLANAR ZENER DIODES (SEMTECH)
  • MM3Z36 - Surface Mount Zener Diodes (KINGWELL)
  • MM3Z36 - Plastic-Encapsulate Diodes (HOTTECH)
  • MM3Z36 - 200mW Surface Mount Zener Diode (GME)
  • MM3Z36 - ZENER DIODES (EIC)
  • MM3Z36 - 0.3W SILICON PLANAR ZENER DIODES (JINAN JINGHENG ELECTRONICS)
  • MM3Z36 - Surface mount Zener Diodes (Bruckewell)
  • MM3Z36 - Silicon Planar Zener Diodes (SEMTECH)
  • MM3Z36 - Silicon Planar Zener Diodes (JGD)
Other Datasheets by Diotec
  • MM3Z36 - SMD Planar Zener Diodes
  • MM3Z30 - SMD Planar Zener Diodes
  • MM3Z30B - Surface mount Silicon Planar Zener Diodes
  • MM3Z33 - SMD Planar Zener Diodes
  • MM3Z33B - Surface mount Silicon Planar Zener Diodes
  • MM3Z39 - SMD Planar Zener Diodes
  • MM3Z39B - Surface mount Silicon Planar Zener Diodes
  • MM3Z3B0 - Surface mount Silicon Planar Zener Diodes

Full PDF Text Transcription

Click to expand full text

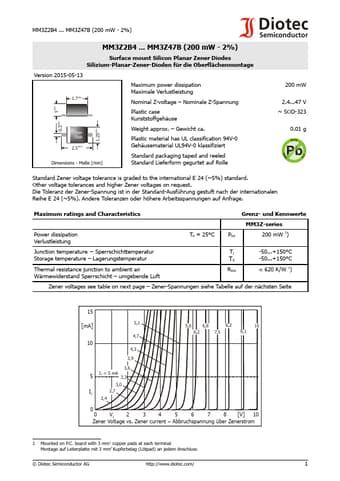

MM3Z2B4 ... MM3Z47B (200 mW - 2%) MM3Z2B4 ... MM3Z47B (200 mW - 2%) Surface mount Silicon Planar Zener Diodes Silizium-Planar-Zener-Dioden für die Oberflächenmontage Version 2015-05-13 Maximum power dissipation Maximale Verlustleistung 1.7±0.1 Nominal Z-voltage – Nominale Z-Spannung ±0.11 Plastic case Kunststoffgehäuse 0.3±0.1 Type Code 2.5±0.2 Dimensions - Maße [mm] 1.25±0.1 Weight approx. – Gewicht ca. Plastic material has UL classification 94V-0 Gehäusematerial UL94V-0 klassifiziert Standard packaging taped and reeled Standard Lieferform gegurtet auf Rolle 200 mW 2.4...47 V ~ SOD-323 0.01 g Standard Zener voltage tolerance is graded to the international E 24 (~5%) standard. Other voltage tolerances and higher Zener voltages on request.
