KBPC1004FP, KBPC1000FP - Single Phase Bridge Rectifier

Name: KBPC1004FP
SKU: KBPC1004FP-1226349

Diotec

The KBPC1004FP by Diotec is a Single Phase Bridge Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	KBPC1004FP, KBPC1000FP
Manufacturer	Diotec
File Size	386.88 KB
Description	Single Phase Bridge Rectifier
Datasheet	KBPC1000FP-Diotec.pdf
Note	This datasheet PDF includes multiple part numbers: KBPC1004FP, KBPC1000FP. Please refer to the document for exact specifications by model.

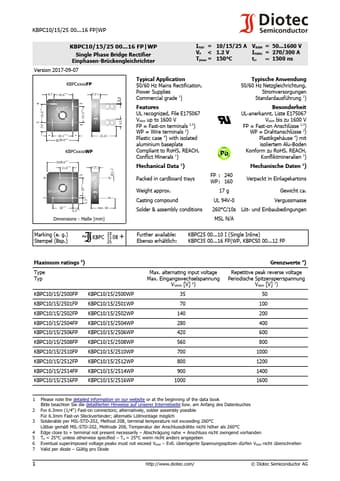

Additional preview pages of the KBPC1004FP datasheet.

UL recognized, File E175067 VRRM up to 1600 V FP = Fast-on terminals 2,3) WP = Wire terminals 3) Plastic case 4) with isolated aluminium baseplate Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) Packed in cardboard trays WEEE RoHS Pb FP : 240 WP : 160 ELV Typische Anwendung 50/60 Hz Netzgleichrichtung, Stromversorgungen Standardausführung 1) Besonderheit UL-anerkannt, Liste E175067 VRRM bis zu 1600 V FP = Fast-on Anschlüsse 2,3) WP = Dra.
