BC817-25 - SMD General Purpose NPN Transistors

Download the BC817-25 datasheet PDF. This datasheet also covers the BC817 variant, as both devices belong to the same smd general purpose npn transistors family and are provided as variant models within a single manufacturer datasheet.

Features

  • General Purpose Three current gain groups Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) Taped and reeled Weight approx. Case material Solder & assembly conditions Besonderheiten Universell anwendbar Drei Stromverstärkungsklassen RoHS Pb Konform zu RoHS, REACH, Konfliktmineralien 1) WEEE Mechanische Daten 1) 3000 / 7“ Gegurtet auf Rolle 0.01 g Gewicht ca. UL 94V-0 Gehäusematerial 260°C/10s Löt- und Einbaubedingungen MSL = 1 T.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BC817-Diotec.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BC817-25
Manufacturer Diotec
File Size 147.21 KB
Description SMD General Purpose NPN Transistors
Datasheet download datasheet BC817-25 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BC817-25 45V NPN SMALL SIGNAL TRANSISTOR Diodes Incorporated
BC817-25 NPN Small Signal Transistor Micro Commercial Components
BC817-25 NPN Silicon AF Transistors Infineon Technologies AG
BC817-25 500mA NPN general-purpose transistors NXP
BC817-25 SMD General Purpose Transistor TAITRON

Other Datasheets by Diotec

Part Number Description
BC817-25W SMD General Purpose NPN Transistors
BC817-16 SMD General Purpose NPN Transistors
BC817-16W SMD General Purpose NPN Transistors
BC817-40 SMD General Purpose NPN Transistors
BC817-40W SMD General Purpose NPN Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

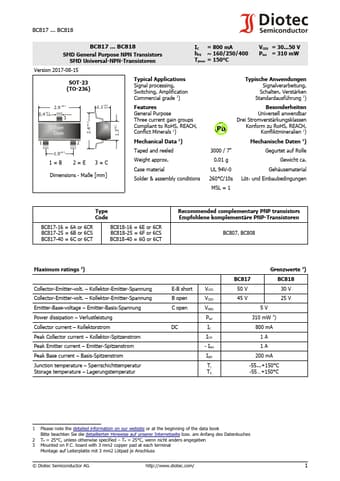

BC817 ... BC818 BC817 ... BC818 SMD General Purpose NPN Transistors SMD Universal-NPN-Transistoren IC = 800 mA hFE ~ 160/250/400 Tjmax = 150°C VCES = 30...50 V Ptot = 310 mW Version 2017-08-15 SOT-23 (TO-236) Typical Applications Signal processing, Switching, Amplification Commercial grade 1) Typische Anwendungen Signalverarbeitung, Schalten, Verstärken Standardausführung 1) 2.9 ±0.1 0.4+0.1 -0.05 3 Type Code 1 2 1.9±0.1 1=B 2=E 1.1+0.1 -0.2 3=C Dimensions - Maße [mm] 2.4 ±0.2 1.3±0.1 ELV Features General Purpose Three current gain groups Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) Taped and reeled Weight approx.
