DB301 - 3 AMP SILICON BRIDGE RECTIFIERS

Download the DB301 datasheet PDF (DB300 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 3 amp silicon bridge rectifiers.

Features

  • PRV Ratings from 50 to 1000 Volts Surge overload rating to 60 Amps peak Reliable low cost molded epoxy construction Ideal for printed circuit board.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DB300_DiotecSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DB301
Manufacturer Diotec Semiconductor
File Size 359.65 KB
Description 3 AMP SILICON BRIDGE RECTIFIERS
Datasheet download datasheet DB301 Datasheet

📁 Similar Datasheet

  • DB3015C - Fixed Inductors (TOKO)
  • DB3018C - Fixed Inductors (TOKO)
  • DB301S - Bridge Rectifier (Yangzhou Yangjie)
  • DB3020C - Fixed Inductors (TOKO)
  • DB302S - Bridge Rectifier (Yangzhou Yangjie)
  • DB303S - Bridge Rectifier (Yangzhou Yangjie)
  • DB304S - Bridge Rectifier (Yangzhou Yangjie)
  • DB305S - Bridge Rectifier (Yangzhou Yangjie)
  • DB306S - Bridge Rectifier (Yangzhou Yangjie)
  • DB307S - Bridge Rectifier (Yangzhou Yangjie)
Other Datasheets by Diotec Semiconductor
  • DB300 - (DB300 - DB310) 3 AMP SILICON BRIDGE RECTIFIERS
  • DB302 - 3 AMP SILICON BRIDGE RECTIFIERS
  • DB304 - 3 AMP SILICON BRIDGE RECTIFIERS
  • DB306 - 3 AMP SILICON BRIDGE RECTIFIERS
  • DB308 - 3 AMP SILICON BRIDGE RECTIFIERS
  • DB3 - Bidirectional Si-Trigger-Diodes (DIAC)
  • DB310 - 3 AMP SILICON BRIDGE RECTIFIERS
  • DB35-005 - Three-Phase Si-Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

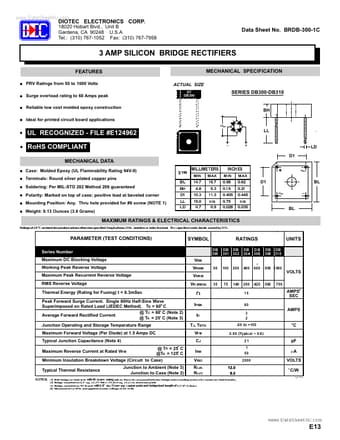

www.DataSheet4U.com DIOTEC ELECTRONICS CORP. 18020 Hobart Blvd., Unit B Gardena, CA 90248 U.S.A Tel.: (310) 767-1052 Fax: (310) 767-7958 Data Sheet No. BRDB-300-1C 3 AMP SILICON BRIDGE RECTIFIERS FEATURES PRV Ratings from 50 to 1000 Volts Surge overload rating to 60 Amps peak Reliable low cost molded epoxy construction Ideal for printed circuit board applications ACTUAL SIZE DT DB306 MECHANICAL SPECIFICATION SERIES DB300-DB310 BH UL RECOGNIZED - FILE #E124962 RoHS COMPLIANT MECHANICAL DATA Case: Molded Epoxy (UL Flammability Rating 94V-0) Terminals: Round silver plated copper pins Soldering: Per MIL-STD 202 Method 208 guaranteed Polarity: Marked on top of case; positive lead at beveled corner Mounting Position: Any. Thru hole provided for #6 screw (NOTE 1) Weight: 0.13 Ounces (3.
