ZXTP25100BFH - 100V PNP MEDIUM POWER TRANSISTOR

Diodes

📥 Download Datasheet

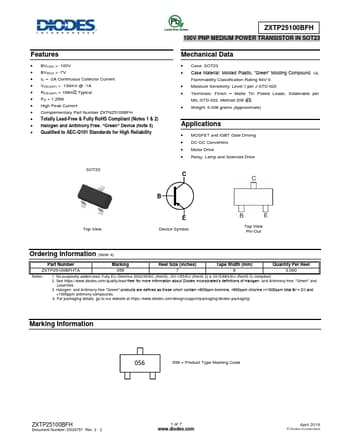

ZXTP25100BFH Datasheet Preview — Preview of ZXTP25100BFH PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZXTP25100BFH
Manufacturer	DIODES
File Size	946.07 KB
Description	100V PNP MEDIUM POWER TRANSISTOR
Datasheet	ZXTP25100BFH-Diodes.pdf

ZXTP25100BFH Product details

Features

BVCEO > -100V.
BVECO > -7V.
IC = -2A Continuous Collector Current.
VCE(SAT) < -130mV @ -1A.
RCE(SAT) = 108mΩ Typical.
PD = 1.25W.
High Peak Current.
Complementary Part Number ZXTN25100BFH.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability SOT23 ZXTP25100BFH 100V PNP MEDIUM POWER.
