ZXTP07040DFF - PNP TRANSISTOR

Name: ZXTP07040DFF
SKU: ZXTP07040DFF-1428193

Diodes

📥 Download Datasheet

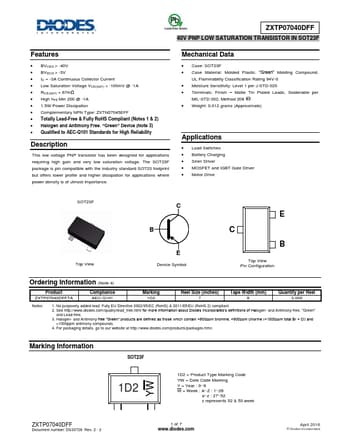

ZXTP07040DFF Datasheet Preview — Preview of ZXTP07040DFF PDF

Datasheet Details

Part number	ZXTP07040DFF
Manufacturer	DIODES
File Size	322.75 KB
Description	PNP TRANSISTOR
Datasheet	ZXTP07040DFF-Diodes.pdf

ZXTP07040DFF Product details

Description

This low voltage PNP transistor has been designed for applications requiring high gain and very low saturation voltage. Case: SOT23F Case Material: Molded Plastic. Moisture Sensitivity: Level 1 per J-STD-0

Features

BVCEO > -40V.
BVECO > -3V.
IC = -3A Continuous Collector Current.
Low Saturation Voltage VCE(SAT) < -100mV @ -1A.
RCE(SAT) = 67mΩ.
High hFE Min 200 @ -1A.
1.5W Power Dissipation.
Complementary NPN Type: ZXTN07045EFF.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
