ZXMN2A01F - 20V N-Channel MOSFET

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Low On-Resistance Fast Switching Speed Low Threshold Low G

Features

  • V(BR)DSS 20V RDS(ON) 0.12Ω @ VGS = 10V ID TA = +25°C 2.2A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZXMN2A01 20V N-CHANNEL MOSFET Zetex Semiconductors
ZXMN2A01E6 20V N-CHANNEL MOSFET Zetex Semiconductors
ZXMN2A02N8 N-CHANNEL ENHANCEMENT MODE MOSFET Zetex Semiconductors
ZXMN2A02X8 20V N-CHANNEL MOSFET Zetex Semiconductors
ZXMN2A03E6 20V N-CHANNEL MOSFET Zetex Semiconductors

Other Datasheets by Diodes Incorporated

Part Number Description
ZXMN2A01E6 20V N-CHANNEL MOSFET
ZXMN2AMC 20V DUAL N-CHANNEL MOSFET
ZXMN2AMCTA 20V DUAL N-CHANNEL MOSFET
ZXMN20B28K 200V N-CHANNEL ENHANCEMENT MODE MOSFET
ZXMN2B03E6 20V SOT26 N-CHANNEL MOSFET

Full PDF Text Transcription

Click to expand full text

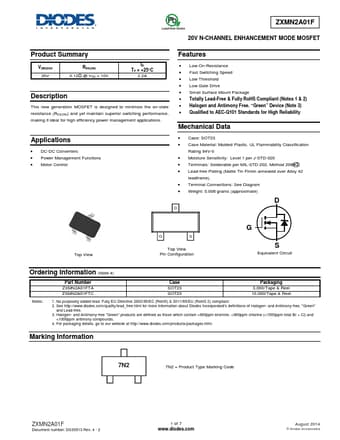

ADVANCED INFORMATION ZXMN2A01F 20V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features V(BR)DSS 20V RDS(ON) 0.12Ω @ VGS = 10V ID TA = +25°C 2.2A Description This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. • Low On-Resistance • Fast Switching Speed • Low Threshold • Low Gate Drive • Small Surface Mount Package • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data Applications • DC-DC Converters • Power Management Functions • Motor Control • Case: SOT23 • Case Material: Molded Plastic.
