US1KSAFS - 1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER

Diodes

The US1KSAFS by Diodes is a 1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

US1KSAFS 1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER by Diodes - Datasheet Preview — Official preview page of the **US1KSAFS** 1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER datasheet (Diodes).

Datasheet Details

Part number	US1KSAFS
Manufacturer	DIODES
File Size	398.12 KB
Description	1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER
Datasheet	US1KSAFS-Diodes.pdf

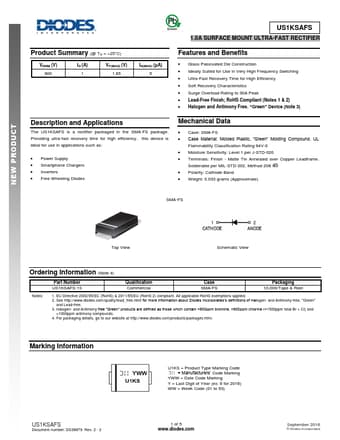

Additional preview pages of the US1KSAFS datasheet.

US1KSAFS Product details

Description

and Applications The US1KSAFS is a rectifier packaged in the SMA-FS package.Providing ultra-fast recovery time for high efficiency, this device is ideal for use in applications such as: Power Supply Smartphone Chargers Inverters Free Wheeling Diodes Mechanical Data Case: SMA-FS Case Material: Molded Plastic, “Green” Molding Compound. Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish - Matte

Features

Glass Passivated Die Construction.
Ideally Suited for Use in Very High Frequency Switching.
Ultra-Fast Recovery Time for High Efficiency.
Soft Recovery Characteristics.
Surge Overload Rating to 30A Peak.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
