STPR1510D, STPR1520D (STPR1505D - STPR1520D) 15A SUPER-FAST GLASS PASSIVATED RECTIFIER

STPR1510D Description

SMD Type High Current Drive Applications 2SA1363 Transistors .

STPR1510D Features

* High hFE : hFE = 150 to 800 High Collector Current (IC = -2A) High Collector Dissipation PC = 500mW Small Package For Mounting Complementary to 2SC3443 Absolute Maximum Ratings Ta = 25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Peak Collector C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPR1510D, STPR1520D. Please refer to the document for exact specifications by model.

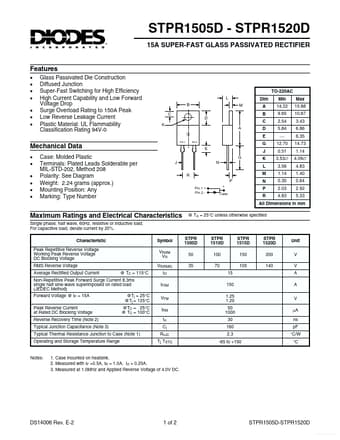

datasheet Preview Page 2

Datasheet Details

Part number
STPR1510D, STPR1520D
Manufacturer
DIODES ↗
File Size
84.68 KB
Datasheet
STPR1520D-Diodes.pdf
Description
(STPR1505D - STPR1520D) 15A SUPER-FAST GLASS PASSIVATED RECTIFIER
Note
This datasheet PDF includes multiple part numbers: STPR1510D, STPR1520D.
Please refer to the document for exact specifications by model.
