SD103CW - SCHOTTKY BARRIER DIODE

Download the SD103CW datasheet PDF. This datasheet also covers the SD103AW variant, as both devices belong to the same schottky barrier diode family and are provided as variant models within a single manufacturer datasheet.

Description

These are 0.2A, 20V/30V/40V Schottky rectifiers packaged in SOD123 package.

Low voltage rectifications High-efficiency DC-DC conversions

Features

  • Low-Forward Voltage Drop (VF).
  • Better Efficiency and Cooler Operation.
  • Guard Ring Construction for Transient Protection.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • For automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SD103AW-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SD103CW SURFACE MOUNT SCHOTTKY BARRIER DIODES Pan Jit International
SD103CW (SD103AW - SD103CW) Schottky Diodes General Semiconductor
SD103CW SURFACE MOUNT SCHOTTKY BARRIER DIODE WON-TOP
SD103CW SMD Schottky Barrier Diode Taiwan Semiconductor
SD103CW Small Signal Schottky Diodes Vishay

Other Datasheets by Diodes Incorporated

Part Number Description
SD103AW SCHOTTKY BARRIER DIODE
SD103BW SCHOTTKY BARRIER DIODE
SD101A SCHOTTKY BARRIER DIODE
SD101AW SCHOTTKY BARRIER SWITCHING DIODE
SD101AWS SURFACE MOUNT SCHOTTKY BARRIER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

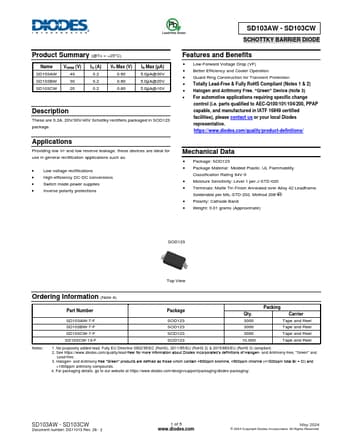

Product Summary (@TA = +25°C) Name SD103AW SD103BW SD103CW VRRM (V) 40 30 20 IO (A) 0.2 0.2 0.2 VF Max (V) 0.60 0.60 0.60 IR Max (µA) 5.0μA@30V 5.0μA@20V 5.0μA@10V Description These are 0.2A, 20V/30V/40V Schottky rectifiers packaged in SOD123 package. Applications Providing low VF and low reserve leakage, these devices are ideal for use in general rectification applications such as: • Low voltage rectifications • High-efficiency DC-DC conversions • Switch mode power supplies • Inverse polarity protections SD103AW - SD103CW SCHOTTKY BARRIER DIODE Features and Benefits • Low-Forward Voltage Drop (VF) • Better Efficiency and Cooler Operation • Guard Ring Construction for Transient Protection • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free.
