SBL1630 16A SCHOTTKY BARRIER RECTIFIER

SBL1630 Description

NOT RECOMMENDED FOR NEW DESIGN SBL1630 - SBL1660 16A SCHOTTKY BARRIER RECTIFIER .

SBL1630 Features

* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* Low Power Loss, High Efficiency
* High Surge Capability
* High Current Capability and Low Forward Voltage Drop
* For Use in Low Voltage, High Frequency Inverters, Free Whe

SBL1630 Applications

* Lead Free Finish, RoHS Compliant (Note 3) Mechanical Data
* Case: TO-220AC
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020C
* Polarity: See Diagram
* Terminals: Finish

📥 Download Datasheet

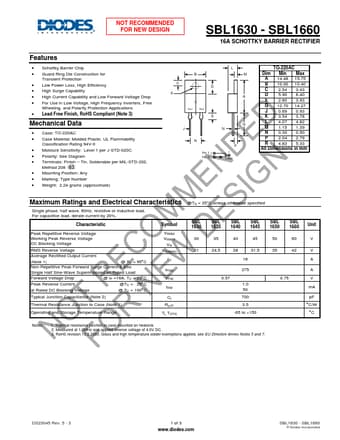

Preview of SBL1630 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBL1630
Manufacturer
DIODES ↗
File Size
83.91 KB
Datasheet
SBL1630-Diodes.pdf
Description
16A SCHOTTKY BARRIER RECTIFIER
