S2B - 1.5A SURFACE MOUNT GLASS PASSIVATED RECTIFIER

Features

  • Glass Passivated Die Construction.
  • Low Forward Voltage Drop and High Current Capability.
  • Surge Overload Rating to 50A Peak.
  • Ideally Suited for Automated Assembly.
  • Lead Free Finish/RoHS Compliant (Note 1).
  • Green Molding Compound (No Halogen and Antimony) (Note 2)   Green S2A/A - S2M/A 1.5A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S2B Surface Mount Glass Passivated Rectifier Vishay
S2B SURFACE MOUNT RECTIFIERS EIC
S2B 2.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER Sangdest Microelectronics
S2B 1.5A Surface Mount Rectifier TAITRON
S2B 2.0A Surface Mount Glass Passivated Rectifier Bruckewell

Other Datasheets by Diodes Incorporated

Part Number Description
S2BA 1.5A SURFACE MOUNT GLASS PASSIVATED RECTIFIER

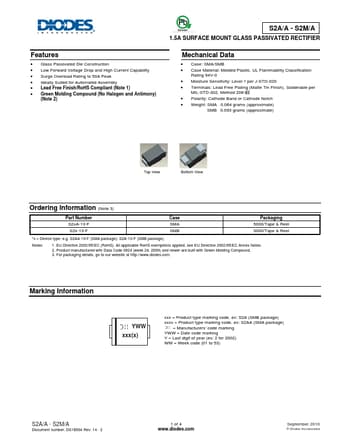

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features • Glass Passivated Die Construction • Low Forward Voltage Drop and High Current Capability • Surge Overload Rating to 50A Peak • Ideally Suited for Automated Assembly • Lead Free Finish/RoHS Compliant (Note 1) • Green Molding Compound (No Halogen and Antimony) (Note 2)   Green S2A/A - S2M/A 1.5A SURFACE MOUNT GLASS PASSIVATED RECTIFIER Mechanical Data • Case: SMA/SMB • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 • Polarity: Cathode Band or Cathode Notch • Weight: SMA 0.064 grams (approximate) SMB 0.
