PI3WVR12612 - DisplayPort 1.2 Video Switch

📥 Download Datasheet

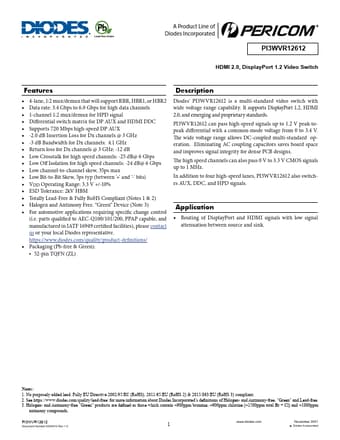

Preview of PI3WVR12612 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number PI3WVR12612
Manufacturer DIODES
File Size 1.86 MB
Description DisplayPort 1.2 Video Switch
Datasheet download datasheet PI3WVR12612-Diodes.pdf

PI3WVR12612 Product details

Description

yy 4-lane, 1:2 mux/demux that will support RBR, HBR1, or HBR2 yy Data rate: 3.4 Gbps to 6.0 Gbps for high data channels yy 1-channel 1:2 mux/demux for HPD signal yy Differential switch matrix for DP AUX and HDMI DDC yy Supports 720 Mbps high-speed DP AUX yy -2.0 dB Insertion Loss for Dx channels @ 3 GHz yy -3 dB Bandwidth for Dx channels: 4.1 GHz yy Return loss for Dx channels @ 3 GHz: -12 dB yy Low Crosstalk for high speed channels: -25 dB@ 6 Gbps yy Low Off Isolation for high speed channels:
