PAM8615 - 16W/ 32W STEREO CLASS-D AUDIO POWER AMPLIFIER

Name: PAM8615
SKU: PAM8615-1102989

Diodes

📥 Download Datasheet

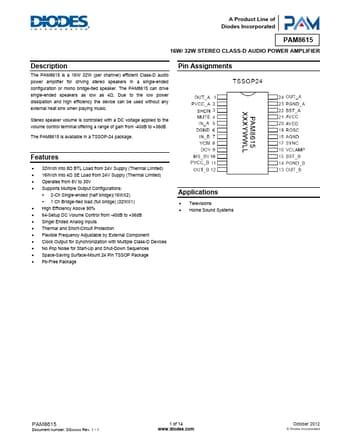

PAM8615 Datasheet Preview — Preview of PAM8615 PDF

Datasheet Details

Part number	PAM8615
Manufacturer	DIODES
File Size	524.95 KB
Description	16W/ 32W STEREO CLASS-D AUDIO POWER AMPLIFIER
Datasheet	PAM8615-Diodes.pdf

PAM8615 Product details

Description

The PAM8615 is a 16W 32W (per channel) efficient Class-D audio power amplifier for driving stereo speakers in a single-ended configuration or mono bridge-tied speaker.

Features

32W/ch into 8Ω BTL Load from 24V Supply (Thermal Limited).
16W/ch into 4Ω SE Load from 24V Supply (Thermal Limited).
Operates from 8V to 30V.
Supports Multiple Output Configurations:.
2-Ch Single-ended (half bridge)(16WX2).
1 Ch Bridge-tied load (full bridge) (32WX1).
High Efficiency Above 90%.
64-.
