PAM8406 - ALTERNATIVE 5W STEREO AUDIO AMPLIFIER

Name: PAM8406
SKU: PAM8406-944759

Diodes

📥 Download Datasheet

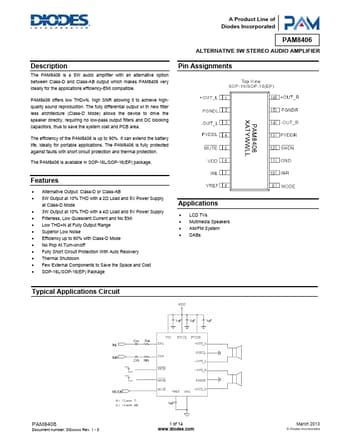

PAM8406 Datasheet Preview — Preview of PAM8406 PDF

Datasheet Details

Part number	PAM8406
Manufacturer	DIODES
File Size	556.87 KB
Description	ALTERNATIVE 5W STEREO AUDIO AMPLIFIER
Datasheet	PAM8406-Diodes.pdf

PAM8406 Product details

Description

The PAM8406 is a 5W audio amplifier with an alternative option between Class-D and Class-AB output which makes PAM8406 very ideally for the applications efficiency-EMI compatible.

Features

Alternative Output: Class-D or Class-AB.
5W Output at 10% THD with a 2Ω Load and 5V Power Supply at Class-D Mode.
3W Output at 10% THD with a 4Ω Load and 5V Power Supply.
Filterless, Low Quiescent Current and No EMI.
Low THD+N at Fully Output Range.
Superior Low Noise.
Efficiency up to 90% with Class-D Mode.
No Pop At Turn-on/off.
Fully Short Circuit Protection With Auto Recovery.
Thermal Shutdown.
Few External Components to Save the Space.
