PAM8302L - 2.5W FILTERLESS CLASS-D MONO AUDIO AMPLIFIER

Description

The PAM8302L is a 2.5W Class-D mono audio amplifier.

Its low THD+N offers high-quality sound reproduction.

The PAM8302L uses a filterless design that avoids the use of lowpass filters.

Features

  • Support 2.0V to 5.5V Supply Voltage Range.
  • 2.5W Output at 10% THD with a 4Ω Load and 5V Power Supply.
  • Filterless, Low Quiescent Current and Low EMI.
  • High Efficiency up to 88%.
  • Superior Low Noise.
  • Short Circuit Protection.
  • Thermal Shutdown.
  • Few External Components t.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PAM8302 Tiny Package 2 Watt Class-D Audio Amplifiers PAM
PAM8302A 2.5W Filterless Class-D Mono Audio Amplifier Power Analog Micoelectronics
PAM8301 Filterless Class-D Mono Audio Amplifier ChipSourceTek
PAM8301 Filterless Class-D Mono Audio Amplifier Power Analog Micoelectronics
PAM8303D 3W Filterless Mono Class-D Audio Power Amplifier Power Analog Micoelectronics

Other Datasheets by Diodes Incorporated

Part Number Description
PAM8302A 2.5W FILTERLESS CLASS-D MONO AUDIO AMPLIFIER
PAM8301 FILTERLESS CLASS-D MONO AUDIO AMPLIFIER
PAM8303C 3W FILTERLESS MONO CLASS-D AUDIO POWER AMPLIFIER
PAM8303D 3W FILTERLESS MONO CLASS-D AUDIO POWER AMPLIFIER
PAM8304 3W MONO CLASS-D AUDIO AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

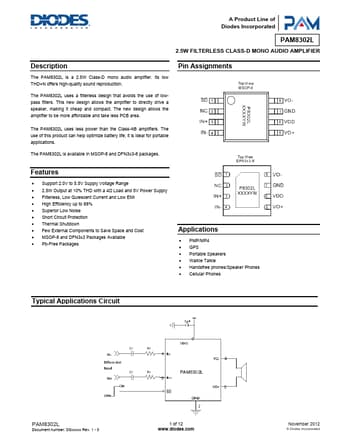

A Product Line of Diodes Incorporated PAM8302L 2.5W FILTERLESS CLASS-D MONO AUDIO AMPLIFIER Description The PAM8302L is a 2.5W Class-D mono audio amplifier. Its low THD+N offers high-quality sound reproduction. The PAM8302L uses a filterless design that avoids the use of lowpass filters. This new design allows the amplifier to directly drive a speaker, making it cheap and compact. The new design allows the amplifier to be more affordable and take less PCB area. Pin Assignments The PAM8302L uses less power than the Class-AB amplifiers. The use of this product can help optimize battery life; it is ideal for portable applications. The PAM8302L is available in MSOP-8 and DFN3x3-8 packages. Features • Support 2.0V to 5.5V Supply Voltage Range • 2.
