MMBZ5233BTS - TRIPLE SURFACE MOUNT ZENER DIODE ARRAY

Download the MMBZ5233BTS datasheet PDF. This datasheet also covers the MMBZ5221BTS variant, as both devices belong to the same triple surface mount zener diode array family and are provided as variant models within a single manufacturer datasheet.

Features

  • Three Isolated Zeners in Ultra-Small Surface Mount Package.
  • Ideally Suited for Automated Assembly Processes.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability MMBZ5221BTS - MMBZ5259BTS TRIPLE.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MMBZ5221BTS-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MMBZ5233BTW SURFACE MOUNT SILICON ZENER DIODES PAN JIT
MMBZ5233B SILICON PLANAR ZENER DIODES SEMTECH
MMBZ5233B SILICON PLANAR ZENER DIODES CUMSUMI
MMBZ5233B Zener diode Excel Semiconductor
MMBZ5233B Surface Mount Zener Diodes WEITRON

Other Datasheets by Diodes Incorporated

Part Number Description
MMBZ5233B 350mW SURFACE MOUNT ZENER DIODE
MMBZ5233BS 200mW SURFACE MOUNT ZENER DIODE
MMBZ5233BW 200mW SURFACE MOUNT ZENER DIODE
MMBZ5230B 350mW SURFACE MOUNT ZENER DIODE
MMBZ5230BS 200mW SURFACE MOUNT ZENER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

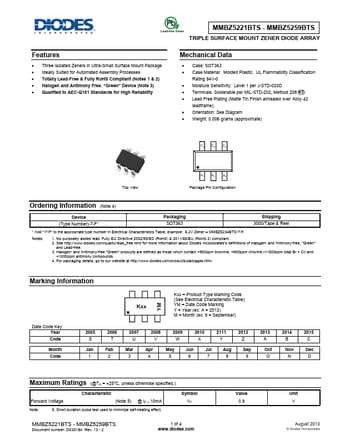

Features  Three Isolated Zeners in Ultra-Small Surface Mount Package  Ideally Suited for Automated Assembly Processes  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability MMBZ5221BTS - MMBZ5259BTS TRIPLE SURFACE MOUNT ZENER DIODE ARRAY Mechanical Data  Case: SOT363  Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020D  Terminals: Solderable per MIL-STD-202, Method 208 e3  Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).  Orientation: See Diagram  Weight: 0.
