MMBD2004S - DUAL SWITCHING DIODE

Diodes

📥 Download Datasheet

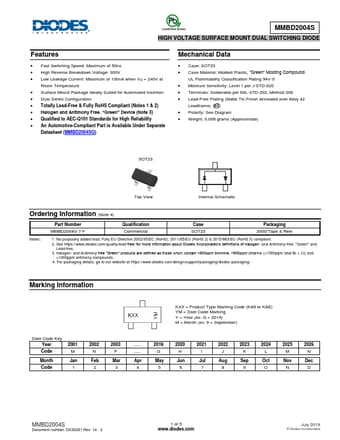

MMBD2004S Datasheet Preview — Preview of MMBD2004S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MMBD2004S
Manufacturer	DIODES
File Size	393.84 KB
Description	DUAL SWITCHING DIODE
Datasheet	MMBD2004S-Diodes.pdf

MMBD2004S Product details

Features

Fast Switching Speed: Maximum of 50ns.
High Reverse Breakdown Voltage: 300V.
Low Leakage Current: Maximum of 100nA when VR = 240V at Room Temperature.
Surface Mount Package Ideally Suited for Automated Insertion.
Dual Series Configuration.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
An Automotive-Compliant Part is Available Under Sepa.
