DZT2222A - 40V NPN TRANSISTOR

Diodes

The DZT2222A by Diodes is a 40V NPN TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

DZT2222A 40V NPN TRANSISTOR by Diodes - Datasheet Preview — Official preview page of the DZT2222A 40V NPN TRANSISTOR datasheet (Diodes).

Datasheet Details

Part number	DZT2222A
Manufacturer	DIODES
File Size	643.09 KB
Description	40V NPN TRANSISTOR
Datasheet	DZT2222A_Diodes.pdf

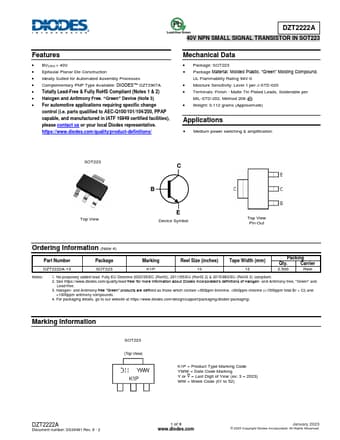

Additional preview pages of the DZT2222A datasheet.

DZT2222A Product details

Features

BVCEO > 40V.
Epitaxial Planar Die Construction.
Ideally Suited for Automated Assembly Processes.
Complementary PNP Type Available: DIODES™ DZT2907A.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.
