DT2041-04SO - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Description

The DT2041-04SO is a high-performance device suitable for protecting four high speed I/Os.

These devices are assembled in SOT26 package and have high ESD surge capability and low capacitance.

Features

  • Low Clamping Voltage: Typical 9V at 10A 100ns, TLP, I/O to VSS; Typical 8V at 10A 100ns, TLP, VCC to VSS.
  • IEC 61000-4-2 (ESD): Air.
  • ±30kV, Contact.
  • ±30kV.
  • IEC61000-4-5(Lighting):10A,I/O to VSS; 12A, VCC to VSS.
  • TLP Dynamic Resistance: 0.25Ω.
  • Low Channel Input Capacitance of 1.0pF Typical.
  • 4 Channel of ESD Protection.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DT20G05A-A LCD Arima
DT26 Tuning Fork Cylinder Quartz Crystal YIC
DT28F016SA 16-MBIT MEMORY Intel
DT28F016SV 16-MBIT MEMORY Intel
DT28F160F3 FAST BOOT BLOCK FLASH MEMORY Intel

Other Datasheets by Diodes Incorporated

Part Number Description
DT2042-04SO 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
DT2042-04TS 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
DT2636-04S 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

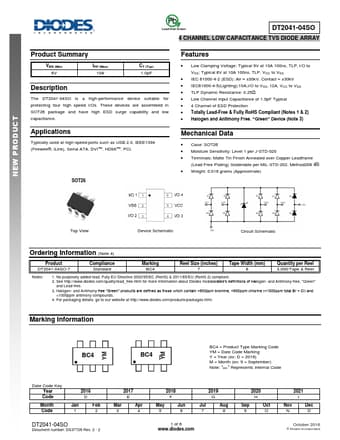

ADVNAENWCEP IRNOFDOURCTMATION DT2041-04SO 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY Product Summary VBR (Min) 6V IPP (Max) 10A CT (Typ) 1.0pF Description The DT2041-04SO is a high-performance device suitable for protecting four high speed I/Os. These devices are assembled in SOT26 package and have high ESD surge capability and low capacitance. Applications Typically used at high-speed ports such as USB 2.0, IEEE1394 (Firewire®, iLink), Serial ATA, DVI™, HDMI™, PCI. SOT26 Features  Low Clamping Voltage: Typical 9V at 10A 100ns, TLP, I/O to VSS; Typical 8V at 10A 100ns, TLP, VCC to VSS  IEC 61000-4-2 (ESD): Air – ±30kV, Contact – ±30kV  IEC61000-4-5(Lighting):10A,I/O to VSS; 12A, VCC to VSS  TLP Dynamic Resistance: 0.25Ω  Low Channel Input Capacitance of 1.
