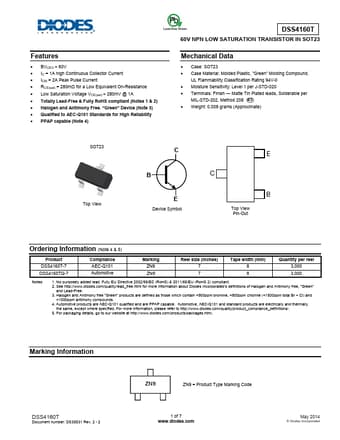

DSS4160T - NPN LOW SATURATION TRANSISTOR

Features

  • BVCEO > 60V.
  • IC = 1A high Continuous Collector Current.
  • ICM = 2A Peak Pulse Current.
  • RCE(sat) = 280mΩ for a Low Equivalent On-Resistance.
  • Low Saturation Voltage VCE(sat) < 280mV @ 1A.
  • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP capable (Note 4) DSS4160T 60V NPN LOW.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DSS41A05 (DSS4 Series) Reed Relays SRC
DSS41A12 (DSS4 Series) Reed Relays SRC
DSS41A24 (DSS4 Series) Reed Relays SRC
DSS41B05 (DSS4 Series) Reed Relays SRC
DSS41B12 (DSS4 Series) Reed Relays SRC

Other Datasheets by Diodes Incorporated

Part Number Description
DSS4160DS DUAL NPN LOW SATURATION TRANSISTOR
DSS4160FDB 60V DUAL NPN LOW VCE(SAT) TRANSISTOR
DSS4160U NPN TRANSISTOR
DSS4160V NPN TRANSISTOR
DSS4140U NPN TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features • BVCEO > 60V • IC = 1A high Continuous Collector Current • ICM = 2A Peak Pulse Current • RCE(sat) = 280mΩ for a Low Equivalent On-Resistance • Low Saturation Voltage VCE(sat) < 280mV @ 1A • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability • PPAP capable (Note 4) DSS4160T 60V NPN LOW SATURATION TRANSISTOR IN SOT23 Mechanical Data • Case: SOT23 • Case Material: Molded Plastic, "Green” Molding Compound. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish — Matte Tin Plated leads, Solderable per MIL-STD-202, Method 208 e3 • Weight: 0.
