DPLS350E - LOW VCE(SAT) PNP SURFACE MOUNT TRANSISTOR

Diodes Incorporated

Features

Epitaxial Planar Die Construction Ideally Suited for Automated Assembly Processes Ideal for Medium Power Switching or Amplification.

DPLS350E low vce(sat) pnp surface mount transistor by Diodes Incorporated - Datasheet Preview

Datasheet Details

Part number	DPLS350E
Manufacturer	Diodes Incorporated
File Size	155.89 KB
Description	LOW VCE(SAT) PNP SURFACE MOUNT TRANSISTOR
Datasheet	DPLS350E Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
DPL4519G	Sound Processor	Micronas

Other Datasheets by Diodes Incorporated

Part Number	Description
DPLS350Y	LOW VCE(SAT) PNP SURFACE MOUNT TRANSISTOR
DPLS160	PNP SURFACE MOUNT TRANSISTOR
DPLS160V	PNP SURFACE MOUNT TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

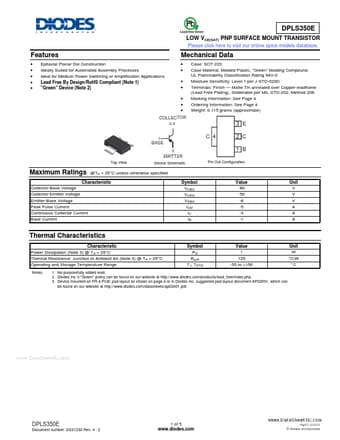

DPLS350E LOW VCE(SAT) PNP SURFACE MOUNT TRANSISTOR Please click here to visit our online spice models database. Features • • • • • Epitaxial Planar Die Construction Ideally Suited for Automated Assembly Processes Ideal for Medium Power Switching or Amplification Applications Lead Free By Design/RoHS Compliant (Note 1) "Green" Device (Note 2) Mechanical Data • • • • • • • COLLECTOR 2,4 Case: SOT-223 Case Material: Molded Plastic, "Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Finish — Matte Tin annealed over Copper leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Marking Information: See Page 4 Ordering Information: See Page 4 Weight: 0.
