DMTH4004SPS - 40V N-Channel MOSFET

Diodes

📥 Download Datasheet

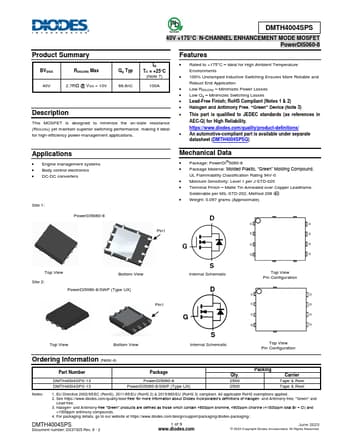

DMTH4004SPS Datasheet Preview — Preview of DMTH4004SPS PDF

Datasheet Details

Part number	DMTH4004SPS
Manufacturer	DIODES
File Size	790.43 KB
Description	40V N-Channel MOSFET
Datasheet	DMTH4004SPS-Diodes.pdf

DMTH4004SPS Product details

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications. Rated to +175°C Ideal for High Ambient Temperature Environments 100% Unclamped Inductive Switching Ensures More Reliable and Robust End Application Low RDS(ON) Minimizes Power Losses Low Qg Minimizes Switching Losses Lead-Free Finish; RoHS Compliant (Notes

Features

BVDSS 40V RDS(ON) Max 2.7mΩ @ VGS = 10V Qg Typ 68.6nC ID TC = +25°C (Note 7) 100A.
