DMTH3004LK3Q - N-Channel MOSFET

Description

This MOSFET is designed to meet the stringent requirements of automotive applications.

Power Management Functions DC-DC Converters BLDC Motor control Reverse Polarity Protection Feature

Features

  • Rated to +175°C.
  • Ideal for High Ambient Temperature Environments.
  • High Conversion Efficiency.
  • Low RDS(ON).
  • Minimizes On-State Losses.
  • Low Input Capacitance.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note 4) Mechanical Data.
  • Case: TO252 (DPAK).
  • Case Material: Molded Plastic, “Green” Molding Compound. UL F.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMTH10H005LCT N-Channel MOSFET INCHANGE
DMTH10H005SCT N-Channel MOSFET INCHANGE
DMTH10H010LCT N-Channel MOSFET INCHANGE
DMTH10H010SCT N-Channel MOSFET INCHANGE
DMTH4004SCTB N-Channel MOSFET INCHANGE

Other Datasheets by Diodes Incorporated

Part Number Description
DMTH3004LK3 N-Channel MOSFET
DMTH3004LFGQ 30V N-CHANNEL MOSFET
DMTH3004LPS N-Channel MOSFET
DMTH3004LPSQ N-Channel MOSFET
DMTH3002LK3 30V N-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

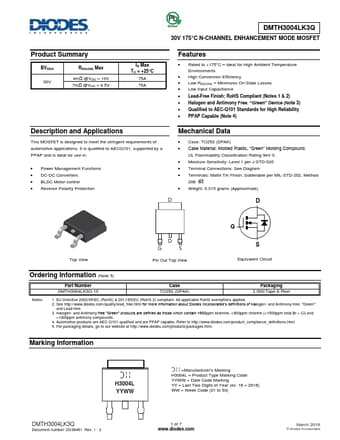

Green DMTH3004LK3Q 30V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 30V RDS(ON) Max 4mΩ @VGS = 10V 7mΩ @VGS = 4.5V ID Max TC = +25°C 75A 75A Description and Applications This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AECQ101, supported by a PPAP and is ideal for use in:  Power Management Functions  DC-DC Converters  BLDC Motor control  Reverse Polarity Protection Features  Rated to +175°C – Ideal for High Ambient Temperature Environments  High Conversion Efficiency  Low RDS(ON) – Minimizes On-State Losses  Low Input Capacitance  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
