DMT8012LPS - N-Channel MOSFET

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.

Synchronous Rectifier Backlighting Power Management Functions DC-DC Conve

Features

  • High Conversion Efficiency.
  • Low RDS(ON).
  • Minimizes On State Losses.
  • Low Input Capacitance.
  • Fast Switching Speed.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMT028QVNTNT0S-1A LCD Module Densitron
DMT035QWNXCSI-1A LCD Module Densitron
DMT070WSNLNT0-1A TFT DISPLAY MODULE Densitron
DMT080YYNLCMU-1A TFT DISPLAY Densitron
DMT1 Output Power Chokes Coilcraft

Other Datasheets by Diodes Incorporated

Part Number Description
DMT8012LPSW 80V N-CHANNEL ENHANCEMENT MODE MOSFET
DMT8012LFG N-Channel MOSFET
DMT8012LK3 N-CHANNEL MOSFET
DMT8012LSS N-CHANNEL MOSFET
DMT8007LPSW 80V N-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

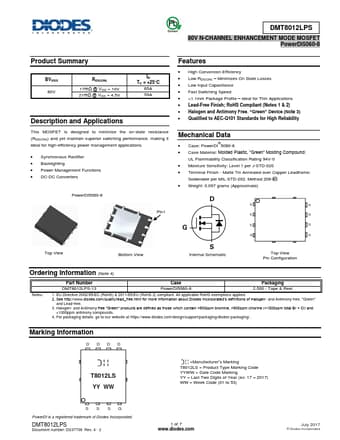

DMT8012LPS Green 80V N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI5060-8 Product Summary BVDSS 80V RDS(ON) 17mΩ @ VGS = 10V 21mΩ @ VGS = 4.5V ID TC = +25°C 65A 59A Description and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.  Synchronous Rectifier  Backlighting  Power Management Functions  DC-DC Converters PowerDI5060-8 Pin1 Features  High Conversion Efficiency  Low RDS(ON) – Minimizes On State Losses  Low Input Capacitance  Fast Switching Speed  <1.1mm Package Profile – Ideal for Thin Applications  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
