DMT69M8LPS - N-CHANNEL MOSFET

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.

High Frequency Switching

Sync.

DC-DC Converters Mechanical Data

Features

  • 100% Unclamped Inductive Switching.
  • Ensures More Reliable and Robust End.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMT6004SCT N-Channel MOSFET INCHANGE
DMT6005LCT N-Channel MOSFET INCHANGE
DMT6009LCT N-Channel MOSFET INCHANGE
DMT6010SCT N-Channel MOSFET INCHANGE
DMT028QVNTNT0S-1A LCD Module Densitron

Other Datasheets by Diodes Incorporated

Part Number Description
DMT69M8LFV 60V N-Channel MOSFET
DMT69M8LSS N-Channel MOSFET
DMT69M5LCG 60V N-Channel MOSFET
DMT69M5LFVW 60V N-CHANNEL MOSFET
DMT69M5LFVWQ 60V N-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

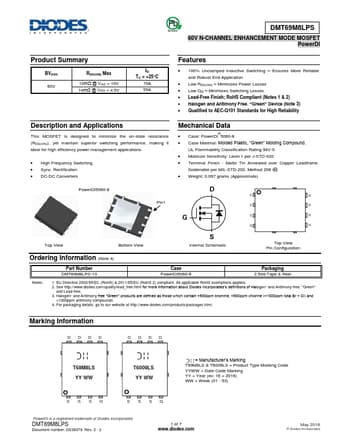

Green DMT69M8LPS 60V N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI Product Summary BVDSS 60V RDS(ON) Max 12mΩ @ VGS = 10V 14mΩ @ VGS = 4.5V ID TC = +25°C 70A 55A Features  100% Unclamped Inductive Switching – Ensures More Reliable and Robust End Application  Low RDS(ON) – Minimizes Power Losses  Low QG – Minimizes Switching Losses  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Description and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.  High Frequency Switching  Sync.
