DMT3006LFDF - N-CHANNEL MOSFET

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Battery Management Application Power Management Functions DC-DC Converters DMT3006LFD

Features

  • 0.6mm Profile.
  • Ideal for Low Profile.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMT3 Output Power Chokes Coilcraft
DMT028QVNTNT0S-1A LCD Module Densitron
DMT035QWNXCSI-1A LCD Module Densitron
DMT070WSNLNT0-1A TFT DISPLAY MODULE Densitron
DMT080YYNLCMU-1A TFT DISPLAY Densitron

Other Datasheets by Diodes Incorporated

Part Number Description
DMT3006LFDFQ N-CHANNEL MOSFET
DMT3006LFG N-CHANNEL MOSFET
DMT3006LDK N-Channel MOSFET
DMT3006LPB Dual 30V N-CHANNEL MOSFET
DMT3006LPS N-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

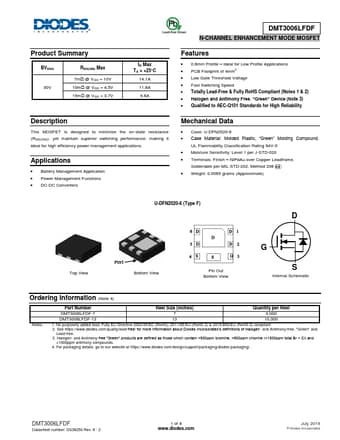

ADVANCED INFORMATION Product Summary BVDSS 30V RDS(ON) Max 7mΩ @ VGS = 10V 10mΩ @ VGS = 4.5V 15mΩ @ VGS = 3.7V ID Max TA = +25°C 14.1A 11.8A 9.6A Description This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications  Battery Management Application  Power Management Functions  DC-DC Converters DMT3006LFDF N-CHANNEL ENHANCEMENT MODE MOSFET Features  0.6mm Profile – Ideal for Low Profile Applications  PCB Footprint of 4mm2  Low Gate Threshold Voltage  Fast Switching Speed  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
