DMP6185SK3 - P-Channel MOSFET

Description

ID TC = +25°C -9.4A -8.5A

Features

  • 100% Unclamped Inductive Switch (UIS) Test in Production.
  • Low On-resistance.
  • Fast Switching Speed.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMP6180SK3 P-Channel MOSFET INCHANGE
DMP6180SK3-13 P-Channel MOSFET INCHANGE
DMP6101A Microprocessor Interface Crydom
DMP-BD755P Blu-ray Disc Player Service Manual Panasonic
DMP-BD75GA Blu-ray Disc Player Service Manual Panasonic

Other Datasheets by Diodes Incorporated

Part Number Description
DMP6185SE P-Channel MOSFET
DMP6185SEQ 60V P-CHANNEL MOSFET
DMP6180SK3 P-Channel MOSFET
DMP6180SK3Q 60V P-Channel MOSFET
DMP6110SFDF P-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

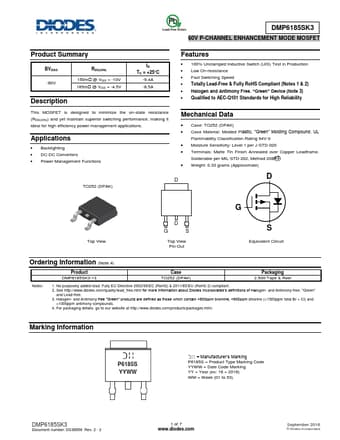

DMP6185SK3 60V P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS -60V RDS(ON) 150mΩ @ VGS = -10V 185mΩ @ VGS = -4.5V Description ID TC = +25°C -9.4A -8.5A Features  100% Unclamped Inductive Switch (UIS) Test in Production  Low On-resistance  Fast Switching Speed  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
