DMP4025LSSQ - P-CHANNEL MOSFET

Diodes

📥 Download Datasheet

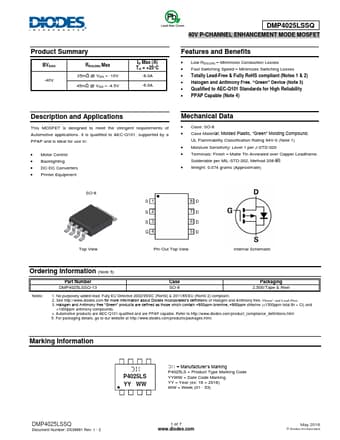

DMP4025LSSQ Datasheet Preview — Preview of DMP4025LSSQ PDF

Datasheet Details

Part number	DMP4025LSSQ
Manufacturer	DIODES
File Size	454.66 KB
Description	P-CHANNEL MOSFET
Datasheet	DMP4025LSSQ-Diodes.pdf

DMP4025LSSQ Product details

Description

and Applications This MOSFET is designed to meet the stringent requirements of Automotive applications.It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: Motor Control Backlighting DC-DC Converters Printer Equipment Mechanical Data Case: SO-8 Case Material: Molded Plastic, “Green” Molding Compound. Moisture Sensitivity: Level 1 per J-STD-020 Terminals: F

Features

Low RDS(ON).
Minimizes Conduction Losses.
Fast Switching Speed.
Minimizes Switching Losses.
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4).
