DMP32D5SFB - P-Channel MOSFET

Product Overview

Diodes

Datasheet Details

Part number	DMP32D5SFB
Manufacturer	DIODES
File Size	504.06 KB
Description	P-Channel MOSFET
Datasheet	DMP32D5SFB Datasheet

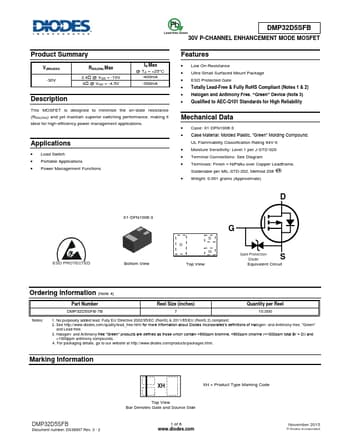

Additional preview pages of the DMP32D5SFB datasheet.

Product details

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Load Switch Portable Applications Power Management Functions

Features

Low On-Resistance.
Ultra-Small Surfaced Mount Package.
ESD Protected Gate.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: X1-DFN1006-3.
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020.
Terminal Connections: See Dia.
