DMP2042UCB4 - P-Channel MOSFET

Diodes

The DMP2042UCB4 by Diodes is a P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

DMP2042UCB4 P-Channel MOSFET by Diodes - Datasheet Preview — Official preview page of the **DMP2042UCB4** P-Channel MOSFET datasheet (Diodes).

Datasheet Details

Part number	DMP2042UCB4
Manufacturer	DIODES
File Size	510.21 KB
Description	P-Channel MOSFET
Datasheet	DMP2042UCB4-Diodes.pdf

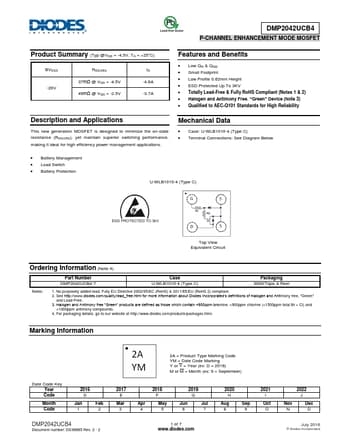

Additional preview pages of the DMP2042UCB4 datasheet.

DMP2042UCB4 Product details

Description

and Applications This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.Mechanical Data Case: U-WLB1010-4 (Type C) Terminal Connections: See Diagram Below Battery Management Load Switch Battery Protection U-WLB1010-4 (Type C) ESD PROTECTED TO 3kV Top View Equivalent Circuit Ordering Information (Note 4) Notes: Part Nu

Features

Low QG & QGD.
Small Footprint.
Low Profile 0.62mm Height.
ESD Protected Up To 3KV.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
