DMN4800LSSQ - N-Channel MOSFET

Product Overview

Diodes

Datasheet Details

Part number	DMN4800LSSQ
Manufacturer	DIODES
File Size	283.39 KB
Description	N-Channel MOSFET
Datasheet	DMN4800LSSQ Datasheet

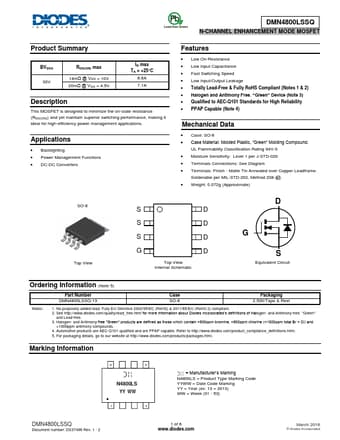

Additional preview pages of the DMN4800LSSQ datasheet.

Product details

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Backlighting Power Management Functions DC-DC Converters

Features

Low On-Resistance.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: SO-8.
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD.
