DMN33D8LV - N-CHANNEL MOSFET

Description

This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Motor Control Power Management Functions DC-DC Converters

Features

  • Low On-Resistance.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • ESD Protected Gate to 2kV.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 standards for High Reliability Mechanical Data.
  • Case: SOT563.
  • Case Material: Molded Plastic, “Green” Molding Compound UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Lev.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMN3007LSS Single N-channel MOSFET Diodes Incorporated
DMN3009SK3 N-Channel MOSFET INCHANGE
DMN3010LK3 N-Channel MOSFET INCHANGE
DMN3010LSS Single N-channel MOSFET Diodes Incorporated
DMN3016LK3 N-Channel MOSFET INCHANGE

Other Datasheets by Diodes Incorporated

Part Number Description
DMN33D8LVQ Dual N-CHANNEL MOSFET
DMN33D8L N-CHANNEL MOSFET
DMN33D8LDW DUAL N-CHANNEL MOSFET
DMN33D8LDWQ Dual N-CHANNEL MOSFET
DMN33D8LT N-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

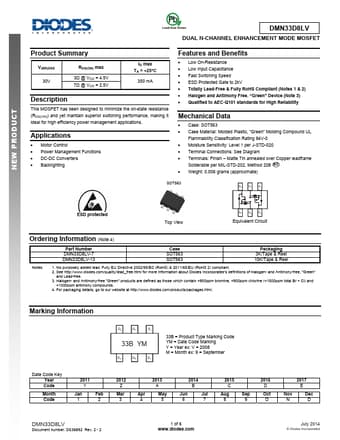

ANDEV AWNPNCREEOWIDNPUFRCOOTRDMUACTTI O N DMN33D8LV DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS 30V RDS(ON) max 3Ω @ VGS = 4.5V 7Ω @ VGS = 2.5V ID max TA = +25°C 350 mA Description This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications • Motor Control • Power Management Functions • DC-DC Converters • Backlighting Features and Benefits • Low On-Resistance • Low Input Capacitance • Fast Switching Speed • ESD Protected Gate to 2kV • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free.
