DMN2005UFG - N-Channel MOSFET

Diodes

📥 Download Datasheet

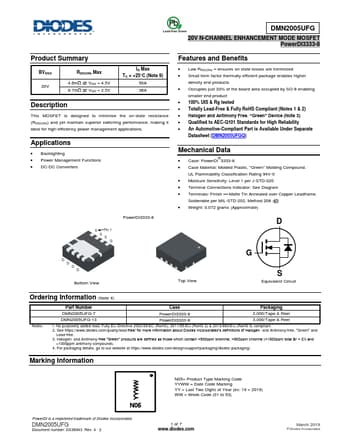

DMN2005UFG Datasheet Preview — Preview of DMN2005UFG PDF

Datasheet Details

Part number	DMN2005UFG
Manufacturer	DIODES
File Size	509.15 KB
Description	N-Channel MOSFET
Datasheet	DMN2005UFG-Diodes.pdf

DMN2005UFG Product details

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Backlighting Power Management Functions DC-DC Converters S Pin 1 S S G PowerDI3333-8 D D D D Bottom View

Features

Low RDS(ON).
ensures on state losses are minimized.
Small form factor thermally efficient package enables higher density end products.
Occupies just 33% of the board area occupied by SO-8 enabling smaller end product.
100% UIS & Rg tested.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
An Automotive-Compliant Part is Available Under.
