DMN10H120SE - N-Channel MOSFET

Diodes

📥 Download Datasheet

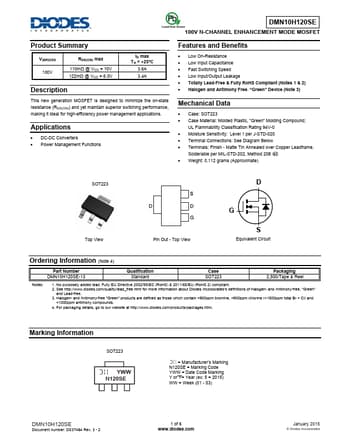

DMN10H120SE Datasheet Preview — Preview of DMN10H120SE PDF

Datasheet Details

Part number	DMN10H120SE
Manufacturer	DIODES
File Size	417.52 KB
Description	N-Channel MOSFET
Datasheet	DMN10H120SE-Diodes.pdf

DMN10H120SE Product details

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications. DC-DC Converters Power Management Functions DMN10H120SE 100V N-CHANNEL ENHANCEMENT MODE MOSFET

Features

Low On-Resistance.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
Case: SOT223.
Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020.
Terminal Connections: See Diagram Below.
Terminals: Finish - Matte Ti.
