DMG2302UK - N-Channel MOSFET

Diodes

The DMG2302UK by Diodes is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

DMG2302UK N-Channel MOSFET by Diodes - Datasheet Preview — Official preview page of the **DMG2302UK** N-Channel MOSFET datasheet (Diodes).

Datasheet Details

Part number	DMG2302UK
Manufacturer	DIODES
File Size	535.95 KB
Description	N-Channel MOSFET
Datasheet	DMG2302UK-Diodes.pdf

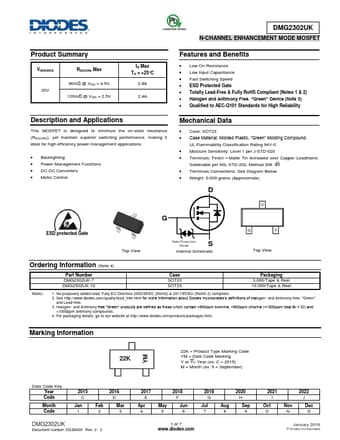

Additional preview pages of the DMG2302UK datasheet.

DMG2302UK Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications. Backlighting Power Management Functions DC-DC Converters Motor Control

Features

Low On-Resistance.
Low Input Capacitance.
Fast Switching Speed.
ESD Protected Gate.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: SOT23.
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020.
Terminals: Finish.
