DMC3021LSD - MOSFET

Description

This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Features

  • Low On-Resistance.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • Low Input/Output Leakage.
  • Complementary Pair MOSFET.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • For automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMC ELECTRIC DOUBLE LAYER CAPACITORS Rubycon
DMC-16202NY-LY-ADE-BF LCD Module OPTREX CORPORATION
DMC-16202NY-LY-AGE LCD Module OPTREX CORPORATION
DMC-16202NY-LY-AZE-BJN LCD Module OPTREX CORPORATION
DMC-16207 LCD Module Optrex

Other Datasheets by Diodes Incorporated

Part Number Description
DMC3021LSDQ COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
DMC3021LK4 MOSFET
DMC3020UDVW MOSFET
DMC3025LDV MOSFET
DMC3025LNS MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

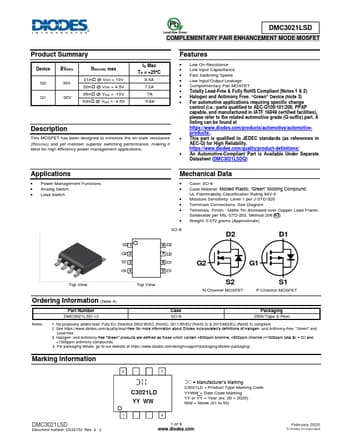

DMC3021LSD COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device Q2 Q1 BVDSS 30V -30V RDS(ON) max 21mΩ @ VGS = 10V 32mΩ @ VGS = 4.5V 39mΩ @ VGS = -10V 53mΩ @ VGS = -4.5V ID Max TA = +25C 8.5A 7.2A -7A -5.6A Description This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Features  Low On-Resistance  Low Input Capacitance  Fast Switching Speed  Low Input/Output Leakage  Complementary Pair MOSFET  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  For automotive applications requiring specific change control (i.e.
