DDZX6V2BTS - TRIPLE SURFACE MOUNT PRECISION ZENER DIODE

Download the DDZX6V2BTS datasheet PDF. This datasheet also covers the DDZX5V1BTS variant, as both devices belong to the same triple surface mount precision zener diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Very Sharp Breakdown Characteristics.
  • Very Tight Tolerance on VZ.
  • Ideally Suited for Automated Assembly Processes.
  • Very Low Leakage Current.
  • Lead Free By Design/RoHS Compliant (Note 7) A C1 C2 C3 KXX BC YM Mechanical Data.
  • Case: SOT-363.
  • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
  • Moisture sensitivity: Level 1 per J-STD-020C.
  • Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DDZX5V1BTS-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DDZX3x (DDZX5V1B - DDZX43) SURFACE MOUNT PRECISION ZENER DIODE Diodes Incorporated
DDZX3xTS (DDZX5V1BTS - DDZX43TS) TRIPLE SURFACE MOUNT PRECISION ZENER DIODE ARRAY Diodes Incorporated
DDZX4x (DDZX5V1B - DDZX43) SURFACE MOUNT PRECISION ZENER DIODE Diodes Incorporated
DDZX4xTS (DDZX5V1BTS - DDZX43TS) TRIPLE SURFACE MOUNT PRECISION ZENER DIODE ARRAY Diodes Incorporated
DDZX9682 (DDZX9682 - DDZX9717) SURFACE MOUNT PRECISION ZENER DIODE Diodes Incorporated

Other Datasheets by Diodes Incorporated

Part Number Description
DDZX6V2B SURFACE MOUNT PRECISION ZENER DIODE
DDZX6V8C SURFACE MOUNT PRECISION ZENER DIODE
DDZX6V8CTS TRIPLE SURFACE MOUNT PRECISION ZENER DIODE
DDZX10CTS TRIPLE SURFACE MOUNT PRECISION ZENER DIODE
DDZX11C SURFACE MOUNT PRECISION ZENER DIODE

Full PDF Text Transcription

Click to expand full text

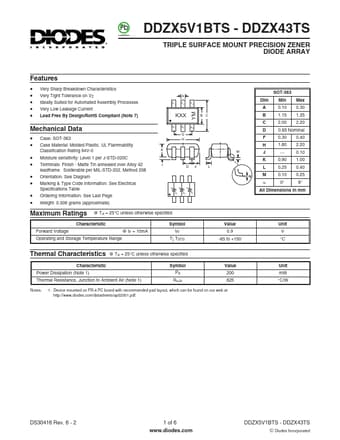

Pb DDZX5V1BTS - DDZX43TS Lead-free TRIPLE SURFACE MOUNT PRECISION ZENER DIODE ARRAY Features · Very Sharp Breakdown Characteristics · Very Tight Tolerance on VZ · Ideally Suited for Automated Assembly Processes · Very Low Leakage Current · Lead Free By Design/RoHS Compliant (Note 7) A C1 C2 C3 KXX BC YM Mechanical Data · Case: SOT-363 · Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 · Moisture sensitivity: Level 1 per J-STD-020C · Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 · Orientation: See Diagram · Marking & Type Code Information: See Electrical Specifications Table · Ordering Information: See Last Page · Weight: 0.
