DDTC144GKA - NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Download the DDTC144GKA datasheet PDF. This datasheet also covers the DDTC114GKA variant, as both devices belong to the same npn pre-biased small signal surface mount transistor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Epitaxial Planar Die Construction.
  • Complementary PNP Types Available (DDTA).
  • Built-In Biasing Resistor, R2 only.
  • Lead Free/RoHS Compliant (Note 2).
  • "Green" Device, Note 3 and 4 Mechanical Data.
  • Case: SC-59.
  • Case Material: Molded Plastic, "Green" Molding Compound, Note 4. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020C.
  • Terminals: Solderable per MIL-STD-202, Method 208.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DDTC114GKA-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DDTC144ELP SMALL SIGNAL SURFACE MOUNT 100mA NPN TRANSISTOR Diodes Incorporated
DDTC142JE (DDTCxxxE) NPN PRE-BIASED 100 mA SOT-523 SURFACE MOUNT TRANSISTOR Diodes Incorporated
DDTC142JU (DDTCxxxU) NPN PRE-BIASED 100 mA SOT-323 SURFACE MOUNT TRANSISTOR Diodes Incorporated
DDTC142TE (DDTCxxxE) NPN PRE-BIASED 100 mA SOT-523 SURFACE MOUNT TRANSISTOR Diodes Incorporated
DDTC142TU (DDTCxxxU) NPN PRE-BIASED 100 mA SOT-323 SURFACE MOUNT TRANSISTOR Diodes Incorporated

Other Datasheets by Diodes Incorporated

Part Number Description
DDTC144GCA NPN PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR
DDTC144GE NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
DDTC144GUA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
DDTC144ECA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
DDTC144EE NPN PRE-BIASED TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

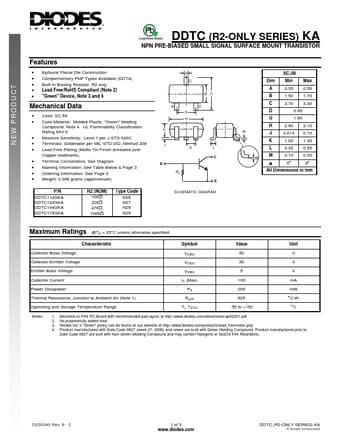

NEW PRODUCT DDTC (R2-ONLY SERIES) KA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR Features • Epitaxial Planar Die Construction • Complementary PNP Types Available (DDTA) • Built-In Biasing Resistor, R2 only • Lead Free/RoHS Compliant (Note 2) • "Green" Device, Note 3 and 4 Mechanical Data • Case: SC-59 • Case Material: Molded Plastic, "Green" Molding Compound, Note 4. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020C • Terminals: Solderable per MIL-STD-202, Method 208 • Lead Free Plating (Matte Tin Finish annealed over Copper leadframe). • Terminal Connections: See Diagram • Marking Information: See Table Below & Page 3 • Ordering Information: See Page 3 • Weight: 0.
