DDTC124TKA - NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTC124TKA
Manufacturer	DIODES
File Size	85.10 KB
Description	NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTC124TKA Datasheet
Note	This datasheet PDF includes multiple part numbers: DDTC124TKA, DDTC113TKA. Please refer to the document for exact specifications by model.

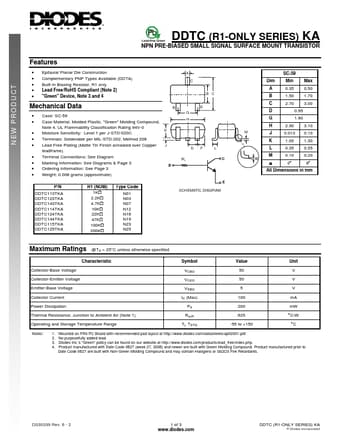

Additional preview pages of the DDTC124TKA datasheet.

Epitaxial Planar Die Construction.
Complementary PNP Types Available (DDTA).
Built-In Biasing Resistor, R1 only.
Lead Free/RoHS Compliant (Note 2).
"Green" Device, Note 3 and 4 A C BC Mechanical Data B.
Case: SC-59.
Case Material: Molded Plastic, "Green" Molding Compound, Note 4. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C K.
Terminals: Solderable per MIL-STD-2.
